Nitto K Brass Quick Coupling Single Shut Off Mould

INTERCHANGEABILITY NITTO K SERIES SINGLE SHUT-OFF MOULD BRASS QUICK COUPLING

K MOULD QUICK COUPLING(SINGLE SHUT-OFF)(BRASS)
→ Features: it specifically design for the cooling system and injecting mold machine, single shut-off.
→ Advantages: Single hand operation, Small dimensions.
→ Application: the line of modular, cooling system.
→ Interchangeability: NITTO K series.
→ Working Pressure:1.0Mpa.
→ Working Temperature: -20℃ to +120℃.

Nitto K Brass Quick Coupling Single Shut Off Mould

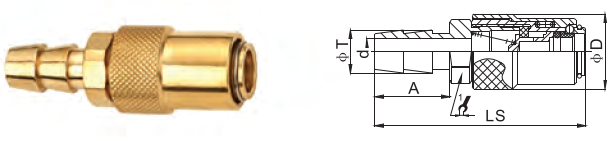

PARTNO.	LS	￠D	HEX1	A	T	d
CB-K-02SM	51	21	17	13	ZG1/4	￠6
CB-K-03SM	51	21	17	13	ZG3/8	￠6

Nitto K Brass Quick Coupling Single Shut Off Mould

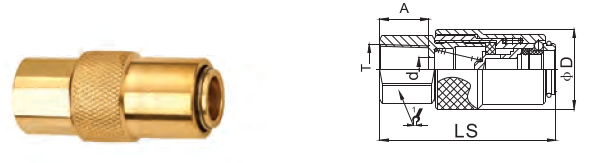

PARTNO.	LS	￠D	HEX1	A	￠T	d
CB-K-02SF	46.5	21	17	13	ZG1/4	￠6
CB-K-03SF	51	21	19	13	ZG3/8	￠6

PARTNO.	LS	￠D	HEX1	A	￠T	d
CB-K-02SH	68	21	17	21	8	￠5
CB-K-03SH	59	21	17	21	12	￠7

PARTNO.	LP	C	HEX2	A	T	d
CB-K-01PM	31	15	14	10	ZG1/8	￠6
CB-K-02PM	33	15	14	13	ZG1/4	￠6

PARTNO.	LP	C	HEX2	T	d
CB-K-02PM	75	15	14	ZG1/4	￠6
CB-K-02PM	100	15	14	ZG1/4	￠6
CB-K-02PM	125	15	14	ZG1/4	￠6
CB-K-02PM	150	15	14	ZG1/4	￠6

PARTNO.	LP	C	HEX2	T	d
CB-K-03PM	75	15	17	ZG3/8	￠6
CB-K-03PM	100	15	17	ZG3/8	￠6
CB-K-03PM	125	15	17	ZG3/8	￠6
CB-K-03PM	150	15	17	ZG3/8	￠6
