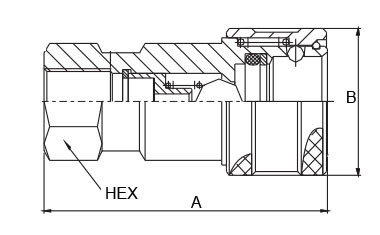

ISO5675 Steel Ball Valves Type socket and plug Hydraulic Quick Coupling

• CB-4 Series brings to the industry a proven design for use on construction equipment, forestry Equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.
• CB-4 Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.

Standard Materials

• zinc-plated steel
• Seals: NBR, Viton, EPDM

Features

1. Poppet valves available to prevent uncoupled leakage.
2. Ball valves available for rugged dependability in heavy-duty hydraulic applications within rated working pressure.
3. Hard, chrome alloy balls are used for valving, It be loaded on the valve seat by the springs.
4. The valve provides a metal-to-metal seal between the ball and coined seat.
5. Critical parts are hardened for durability.
6. Dependable ball-locking mechanism holds the mating halves together.
7. Socket and plug are precision machined from solid bar stock.
8. CB-4 series conforms to the standard of ISO5675.
9. Compatible with PARKER 4000 Series and FASTER NV/NS Series.
