    threaded-hydraulic-quick-couplings-cb-sps-3fn-cvv

    CB-SPS-3FN-CVV Threaded Sleeve-Lock Hydraulic Coupling

    The CB-SPS-3FN-CVV is a high-durability threaded quick coupling engineered by Carterberg, built to withstand hydraulic pulses, frequent flow surges, and harsh outdoor environments. Its compact sleeve-lock structure allows for secure manual connection with matching threads on the nipple side, ideal for construction equipment, excavators, and fluid transfer systems.
    Manufactured from solid barstock and treated with advanced chrome plating, this model offers excellent corrosion resistance and consistent alignment under vibration.

    Key Features

    Threaded Sleeve Lock Mechanism
    Secure connection achieved by threading female sleeve onto male nipple, resistant to accidental decoupling under pressure.
    Anti-Impulse Valve Design
    Specially designed to mitigate damage from sudden hydraulic surges and pressure spikes.
    Valve Retainer with Positive Stop Ring
    Ensures accurate internal valve alignment, maintaining reliable shut-off under dynamic conditions.
    Machined Chrome-Plated Steel Construction
    High corrosion resistance and long service life in outdoor or mobile hydraulic systems.
    Interchangeable Profile
    Compatible with FASTER CVV series and STUCCHI VD series threaded couplers.

    Technical Specifications

    ParameterValue
    ModelCB-SPS-3FN-CVV
    Connection TypeThreaded sleeve with locking ring
    Valve TypeDual shut-off
    Seal MaterialNBR (Buna-N)
    Body MaterialChrome-plated steel
    Available Sizes1/4", 3/8", 1/2", 3/4", 1"
    Rated Pressure5000 PSI (1/4", 3/8", 1/2")4500 PSI (3/4", 1")
    Rated Flow (GPM)3, 6, 12, 28, 50
    Temperature Range–20°C to +120°C
    Interchange CompatibilityFaster CVV Series, Stucchi VD Series

    Dimensional Overview

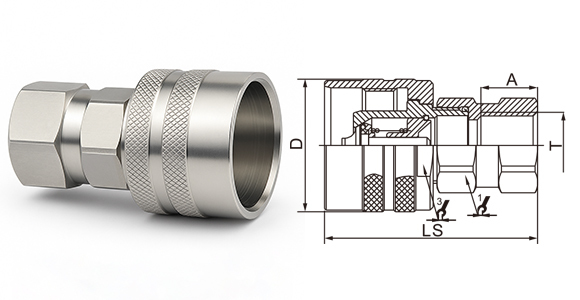

    Female (Socket)

    CB-SPS-3FN-CVV female hydraulic coupler with sleeve-lock thread and Buna-N seal interface

    PART NO.LSDHEX1HEX3AT
    CB-S2S-CVV58.634S19六角S30对边13G1/4 NPT1/4
    CB-S3S-BA66.534S22六角S30对边13G3/8 NPT3/8
    CB-S4S-BA76.542S27六角S36对边18G1/2 NPT1/2
    CB-S6S-BA89.548S36六角S41对边18G3/4 NPT3/4
    CB-S8S-BA105.556.5S41六角S51对边24.5G1 NPT1


    Mmale (Plug)

    CB-SPS-3FN-CVV male hydraulic coupler with external thread and valve core for pressure pulse systems

    PART NO.LPdHEX2AT
    CB-P2S-CVV60M24*2S19六角13G1/4 NPT1/4
    CB-P3S-BA55.3M28*2S22六角13G3/8 NPT3/8
    CB-P4S-BA61.5M36*2S27六角18G1/2 NPT1/2
    CB-P6S-BA83.5M42*2S36六角18G3/4 NPT3/4
    CB-P8S-BA94.5M48*3S41六角24.5G1 NPT1


    Application Fields

    • Excavator and earthmoving fluid systems
    • High-pulse hydraulic circuits on drilling machines
    • Mobile hydraulic power units
    • Vehicle-mounted repair equipment
    • Agricultural hydraulic manifolds

    Structural Advantages

    FeatureFunction
    Sleeve-lock threaded connectionStrong grip and pressure integrity under vibration
    Dual shut-off poppet valveLeak-proof disconnection during frequent operation
    Anti-rust platingStable outdoor performance
    Valve retainer ringEnsures positive valve seating and alignment
