Industrial-Graded Pneumatic Quick Coupling Connector BSPP / NPT/G Thread 1.0MPa Nitto / Cejn / Rectus Compatible

Steel Large Flow Application in Pneumatic tools,automotive,compressed air,shipbuilding Pneumatic Quick Couplings

The Air Quick Release Connector Coupling is a heavy-duty industrial solution designed for high-performance pneumatic systems. Constructed from chrome-plated carbon steel, it ensures superior corrosion resistance and durability in demanding environments. Available in 1/8", 1/4", 3/8", and 1/2" sizes, it supports BSPP, G, and NPT threads, guaranteeing seamless integration with global piping standards. Rated for 1.0 MPa, it reliably handles compressed air systems in automotive, shipbuilding, and industrial machinery applications.

Engineered for cross-compatibility, this coupler seamlessly interfaces with Nitto Hi-cupla, Cejn 315, and Rectus 13KA series, minimizing downtime during tool changes. Its ergonomic quick-release design enables rapid connection/disconnection, optimizing workflow efficiency. Ideal for pneumatic tools, compressed air lines, and hydraulic equipment, the coupling combines rugged construction with universal adaptability, meeting stringent industrial safety and performance requirements.

PARTNO.	LS	Φ D	HS	A	Φ T	d
CB-S2S-12H-L	83	35	6 32*36.7	35	15	10
CB-S3S-12H-L	87	35	6 32*36.7	39	21	14
CB-S4S-12H-L	90	35	6 32*36.7	42	27	19.5

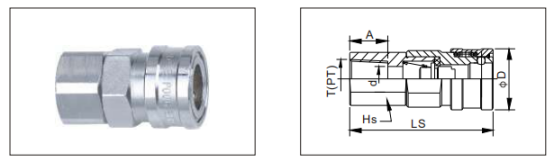

PARTNO.	LS	Φ D	HS	A	T(PT)	d
CB-S2S-12FN-L	58.5	35	6角32*36.7	16	PT1/2’’ 14P	13
CB-S3S-12FN-L	60	35	6角32*36.7	17	PT3/4’’ 14P	15
CB-S4S-12FN-L	60	35	6角32*36.7	19	PT1’’ 11P	15

PARTNO.	LS	Φ D	HS	A	T(PT)	d
CB-S2S-12MN-L	64	35	6 32*36.7	16	PT1/2’’ 14P	13
CB-S3S-12MN-L	66	35	6 32*36.7	18	PT3/4’’ 14P	15
CB-S4S-12MN-L	68	35	6 32*36.7	20	PT1’’ 11P	15

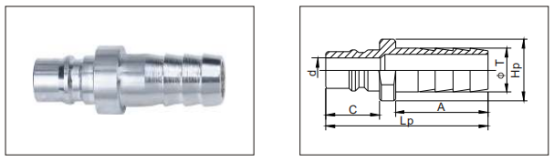

PARTNO.	Lp	C	Hp	A	Φ T	d
CB-P2S-12H-L	68	23.5	22	35	15	12.5
CB-P3S-12H-L	72	23.5	25	39	21	12.5
CB-P4S-12H-L	75	23.5	30	42	27	12.5

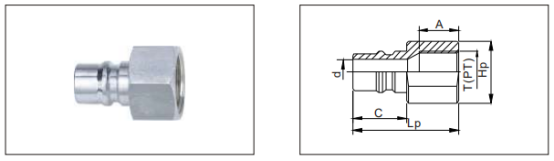

PARTNO.	Lp	C	Hp	A	T(PT)	d
CB-P2S-12FN-L	42	23.5	6 32*36.7	12	PT1/2’’ 14P	12.5
CB-P3S-12FN-L	43.5	23.5	6 32*36.7	15	PT3/4’’ 14P	12.5
CB-P4S-12FN-L	45.5	23.5	6 32*36.7	15	PT1’’ 11P	12.5

PARTNO.	Lp	C	Hp	A	T(PT)	d
CB-P2S-12MN-L	49	23.5	6 21*24	16	PT1/2’’ 11P	12.5
CB-P3S-12MN-L	51	23.5	6 27*31	18	PT3/4’’ 14P	12.5
CB-P4S-12MN-L	53	23.5	6 35*40	20	PT1’’ 11P	12.5

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
