28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type

PK 3/4INCH CLOSE TYPE HYDRAULIC QUICK COUPLING

Applications: The Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.

Specifications:

Body Size(in)	1/4	3/8	1/2	3/4	1
Rated Pressure(PSI)	5000	4000	4000	3000	3000
Rated Flow(GPM)	3	6	12	28	50
Temperature Range(std seals)	-20℃ to +120℃
Standard seal material	NBR

Features

1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6The series conforms to the standard of ISO5675.
7.Compatible with PARKER 4000 Series and FASTER NV/NS Series

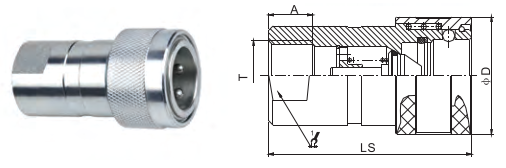

PARTNO.	LS	￠D	HEX1	A	T
CB-PK-S2SF	55.5	27.6	22.2	12.5	G1/4 NPT1/4
CB-PK-S3SF	60.5	34	24	13	G3/8 NPT3/8
CB-PK-S4SF	68	38	27	16	G1/2 NPT1/2
CB-PK-S6SF	83	47.5	35	18	G3/4 NPT3/4
CB-PK-S6SF(E)	82.5	48.2	34	19	G3/4 NPT3/4
CB-PK-S8SF	97.5	56.2	41	21	G1 NPT1

PARTNO.	LP	d	C	HEX2	A	T
CB-PK-P2SF	36	14.2	18.5	19	12.5	G1/4 NPT1/4
CB-PK-P3SF	40	19	22	24	13	G3/8 NPT3/8
CB-PK-P4SF	46	20.5	29	27	18	G1/2 NPT1/2
CB-PK-P6SF	51	26.9	28.5	33.3	18	G3/4 NPT3/4
CB-PK-P6S(E)	53.5	28	32	34	19	G3/4 NPT3/4
CB-PK-P8SF	64	31.3	34	41	21	G1" NPT1"
