Ball Valves Type ISO 5675 Coupler Steel Hydraulic Quick Coupling For Construction

ISO 5675 Ball Valves Type Hydraulic Quick Coupling(Steel) use on construction equipment

Applications: The ISO5675 Series brings to the industry a proven design for use on construction equipment, forestry Equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.

Specifications:

Body Size(in)	1/2
Rated Pressure(PSI)	4000
Rated Flow(GPM)	12
Temperature Range(std seals)	-20℃ to +120℃
Standard seal material	NBR

Features

Poppet valves available to prevent uncoupled leakage.
Ball valves available for rugged dependability in heavy-duty hydraulic applications within rated working pressure.
Hard, chrome alloy balls are used for valving, It be loaded on the valve seat by the springs.
The valve provides a metal-to-metal seal between the ball and coined seat.
Critical parts are hardened for durability.
Dependable ball-locking mechanism holds the mating halves together.
Socket and plug are precision machined from solid bar stock.
The series conforms to the standard of ISO5675.
Compatible with PARKER 4250 Series and FASTER CPV-CNV Series.

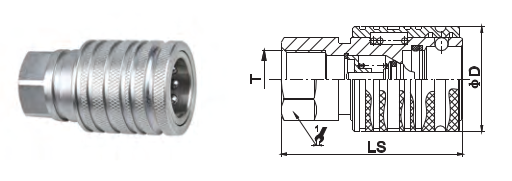

PARTNO.	LS	￠D	HEX1	T
CB-S5-04SF3/8	66	38	27	3/8BSP NPT3/8
CB-S5-04SF1/2	66	38	27	1/2BSP NPT1/2
CB-S5-04SF3/4	69	38	34	3/4BSP NPT3/4
CB-S5-04SFM14	66	38	27	M14*1.5
CB-S5-04SFM16	66	38	27	M16*1.5
CB-S5-04SFM18	66	38	27	M18*1.5
CB-S5-04SFM22	66	38	27	M22*1.5

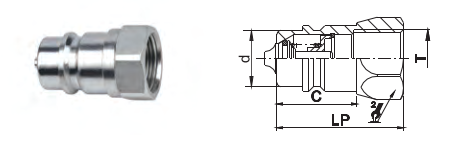

PARTNO.	LP	d	C	HEX2	T
CB-S5-04PF3/8	61.5	20.5	27	27	3/8BSP NPT3/8
CB-S5-04PF1/2	44	20.5	27	27	1/2BSP NPT1/2
CB-S5-04PF3/4	64.5	20.5	34	34	3/4BSP NPT3/4
CB-S5-04PFM14	61.5	20.5	27	27	M14*1.5
CB-S5-04PFM16	61.5	20.5	27	27	M16*1.5
CB-S5-04PFM18	61.5	20.5	27	27	M18*1.5
CB-S5-04PFM22	44	20.5	27	27	M22*1.5
