Joint Tube Tractors Agricultural Quick Couplings

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-8
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C,D/A,D/P,T/T,Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

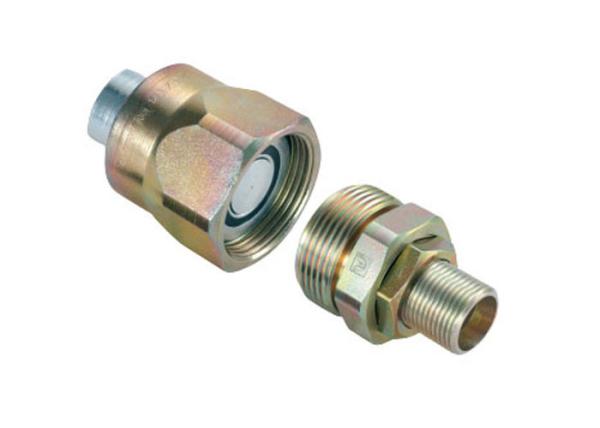

Joint Tube Tractors Agricultural Quick Couplings

Applications in Tractors, agricultural and forestry machinery and equipment Agricultural Quick couplings

CB-8 Series couplings

Applications

Tractors, agricultural and forestry machinery and equipment

Standard Materials

Zinc-plated steel
Seals: NBR, Viton, EPDM

Features

Double shut-off couplings
Connection by screwing up the locking sleeve
Minimum entry of air and loss of fluid
Dust caps and plugs
Compatible with HANSEN K8000 Series.

Joint Tube Tractors Agricultural Quick Couplings

DN (mm)	PARTNO.	Thread	A	B	Hex
8	CB-S1S-8M	M18*150	55	41	23

Joint Tube Tractors Agricultural Quick Couplings

DN (mm)	PARTNO.	Thread	C	D	E	Hex
8	CB-P1S-8M-B	M18*150	50,5	23	M36*200	35
8	CB-P2S-8M-B	M20*150	50,5	23	M36*200	35
8	CB-P3S-8M-B	G1/2	56	15	M36*200	35

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
