CB-8 Series Hydraulic Brake Couplings for Agricultural & Forestry Trailers – ISO 5676 Compliant

Applications in Trailer brake circuits on agricultural and forestry Vehicles Agricultural Quick couplings

Applications

Trailer brake circuits on agricultural and forestry vehicles

CB-8 Series couplings have nominal diameters no greater than 25 mm. they are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

Standard Materials

Zinc-plated steel
Seals: NBR, Viton, EPDM

Features

Double shut-off couplings
Pull-to-connect couplings
Ball-locking
Meets the requirements of ISO 5676 and NFU16-006
Minimum entry of air and loss of fluid
Dust caps and plugs
Compatible with HANSEN Q9000 Series.

CB-8 Series Hydraulic Brake Couplings for Agricultural & Forestry Trailers – ISO 5676 Compliant

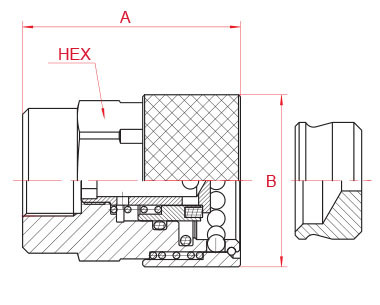

DN (mm)	PARTNO.	Thread	A	B	Hex
8	CB-S1S-8F-C	M18*150	55,5	44	38

CB-8 Series Hydraulic Brake Couplings for Agricultural & Forestry Trailers – ISO 5676 Compliant

DN (mm)	PARTNO.	Thread	C	D	E	Hex
8	CB-P1S-8M-C	M18*150	50,5	22,5	30	32
8	CB-P2S-8M-C	M20*150	50,5	22,5	30	32

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
