NBR BSPP Shut Off Hydraulic Quick Connect Couplings

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-7
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

NBR BSPP Shut Off Hydraulic Quick Connect Couplings

Steel quick disconnect coupling hydraulic applications double shut-off coupling

• Automobile • Agriculture • Construction • Oil and Gas • Railway • Aeronautics • Food Processing • Iron and Steel Industry • Electronics • Laboratories • General Hydraulic Applications

CB-7 Series steel quick disconnect coupling is a pull to connect double shut-off coupling. it remains as the series users prefer when it comes to severe hydraulic applications such as high pressure, pressure impulses, heavy mechanical loads and frequent connection and disconnection cycles. The unique sleeve lock option offers a reliable solution and benefit to the end user when safety is a concern.

Applications

Standard Materials

Zinc trivalent steel
Seals: NBR, Viton, EPDM

Features

Proprietary profile
Pull-to-connect with double shut-off valving
Ball-locking
Optional safety sleeve lock prevents accidental disconnections
Optional dust caps and plugs (made of anodized aluminum)
Pressure performance
Compatible with HANSEN5000 Series.

NBR BSPP Shut Off Hydraulic Quick Connect Couplings

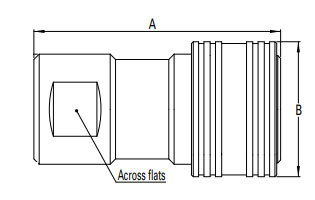

Body Size	PARTNO.	Thread	A	B	HEX
1/8"	CB-S1S-7FN	1/8-27	1.65	0.94	0.63
1/8"	CB-S1S-7FG	1/8-28	1.65	0.94	0.63
1/4"	CB-S2S-7FN	1/4-18	1.97	1.10	0.75
1/4"	CB-S2S-7FG	1/4-19	1.97	1.10	0.75
3/8"	CB-S3S-7FN	3/8-18	2.32	1.34	0.90
3/8"	CB-S3S-7FG	3/8-19	2.32	1.34	0.90
1/2"	CB-S4S-7FN	1/2-14	2.71	1.50	1.06
1/2"	CB-S4S-7FG	1/2-14	2.71	1.50	1.06
3/4"	CB-S6S-7FN	3/4-14	3.50	1.89	1.38
3/4"	CB-S6S-7FG	3/4-14	3.50	1.89	1.38
1"	CB-S8S-7FN	1-11	3.89	2.05	1.61
1"	CB-S8S-7FG	1-11	3.89	2.05	1.61

NBR BSPP Shut Off Hydraulic Quick Connect Couplings

Body Size	PARTNO.	Thread	C	D	HEX
1/8"	CB-P1S-7FN	1/8-27	1.10	0.72	0.63
1/8"	CB-P1S-7FG	1/8-28	1.10	0.72	0.63
1/4"	CB-P2S-7FN	1/4-18	1.38	0.86	0.75
1/4"	CB-P2S-7FG	1/4-19	1.38	0.86	0.75
3/8"	CB-P3S-7FN	3/8-18	1.65	1.04	0.90
3/8"	CB-P3S-7FG	3/8-19	1.65	1.04	0.90
1/2"	CB-P4S-7FN	1/2-14	1.97	1.22	1.06
1/2"	CB-P4S-7FG	1/2-14	1.97	1.22	1.06
3/4"	CB-P6S-7FN	3/4-14	2.48	1.58	1.38
3/4"	CB-P6S-7FG	3/4-14	2.48	1.58	1.38
1"	CB-P8S-7FN	1-11	2.79	1.87	1.61
1"	CB-P8S-7FG	1-11	2.79	1.87	1.61
