Hot Oil IATF 16949 Hydraulic Quick Disconnect Couplings

Valved sockets for automatic shut off when line is disconnected Brass Straight Through Coupler

CB-11-B Series couplings can be used with water-glycol, hot water and hot oil. Body sizes are 1/4", 3/8" and 1/2".

couplings provide the flow needed to cool or heat injection molds and die casting dies. Sockets are available non-valved for maximum flow, and valved to prevent fluid loss when disconnected.

Features

Valved sockets for automatic shut off when line is disconnected
Brass plugs with male pipe thread for recessed mounting to avoid damage to plugs when molds are being changed or stored
Compatible with Flo-Temp Series.

Hot Oil IATF 16949 Hydraulic Quick Disconnect Couplings

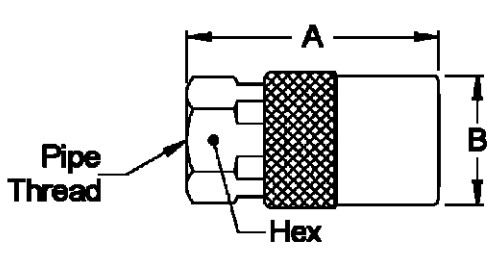

Body Size	PARTNO.	Thread	A	B	Hex
1/4"	CB-S2B-11FN-C	1/8-27	1.68	0.67	0.56
3/8"	CB-S3B-11FN-C	1/4-18	2.18	0.89	0.75
1/2"	CB-S4B-11FN-C	1/2-14	2.00	1.17	1.13

Hot Oil IATF 16949 Hydraulic Quick Disconnect Couplings

Body Size	PARTNO.	Thread	D	E	Hex
1/4"	CB-P2B-11FN-C	1/8-27	1.00	0.58	0.50
3/8"	CB-P3B-11FN-C	1/4-18	1.38	0.72	0.63
1/2"	CB-P4B-11FN-C	1/2-14	1.72	1.08	0.94

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
