0.25 Inch Stainless Steel Quick Connect Fittings

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-11
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

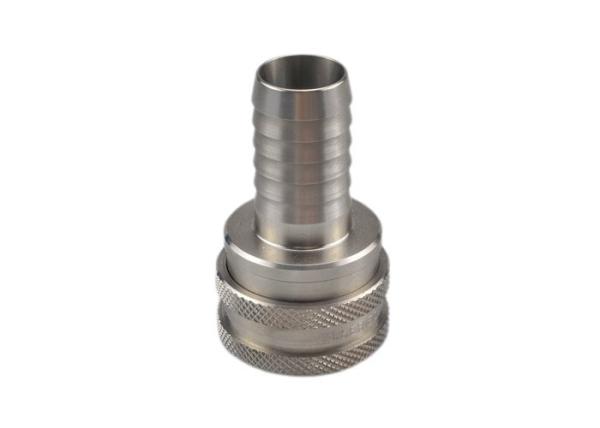

0.25 Inch Stainless Steel Quick Connect Fittings

Non-Valved Series maximum flow straight-through couplings

Features

Male and female NPTF, BSPP and hose stem connections
Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.
Ball lock
Manual operation
Smooth bore permits free flow of liquid or gas

CB-11 Series straight-through couplings are designed for use where minimum pressure drop is required and valving is not needed. They are well suited for use on pressure wash, steam cleaning and carpet cleaning equipment, and many fluid transfer systems. Body sizes range from 1/8" to 1".

Standard Materials

Brass, zinc-plated steel, stainless steel
Seals: NBR, Viton, EPDM

BODY SIZE	Rated Pressure (PSI)	Rated Pressure (BAR)	Standard seal material
1/8"	4200	290	NBR
1/4"	7500	517
3/8"	6300	434
1/2"	3600	248
3/4"	3000	207
1"	2000	138

0.25 Inch Stainless Steel Quick Connect Fittings

Body Size	PARTNO. Brass	PARTNO. Stainless	Thread	A	B	HEX
1/8"	CB-S1B-11FN	CB-S1L-11FN	1/8-27	1.06	0.69	0.50
1/8"	CB-S1B-11FG	CB-S1L-11FG	1/8-28	1.03	0.69	0.56
1/4"	CB-S2B-11FN	CB-S2L-11FN	1/4-18	1.50	0.94	0.81
1/4"	CB-S2B-11FG	CB-S2L-11FG	1/4-19	1.50	0.94	0.81
3/8"	CB-S3B-11FN	CB-S3L-11FN	3/8-18	1.59	1.13	1.00
3/8"	CB-S3B-11FG	CB-S3L-11FG	3/8-19	1.59	1.13	1.00
1/2"	CB-S4B-11FN	CB-S4L-11FN	1/2-14	1.91	1.31	1.13
1/2"	CB-S4B-11FG	CB-S4L-11FG	1/2-14	1.91	1.31	1.13
3/4"	CB-S6B-11FN	CB-S6L-11FN	3/4-14	2.06	1.69	1.44
3/4"	CB-S6B-11FG	CB-S6L-11FG	3/4-14	2.06	1.69	1.44
1"	CB-S8B-11FN	CB-S8L-11FN	1-11	2.31	2.00	1.75
1"	CB-S8B-11FG	CB-S8L-11FG	1-11	2.33	2.00	1.75

0.25 Inch Stainless Steel Quick Connect Fittings

Body Size	PARTNO. Brass	PARTNO. Steel	PARTNO. Stainless	Thread	C	D	HEX
1/8"	CB-P1B-11FN	CB-P1S-11FN	CB-P1L-11FN	1/8-27	1.00	0.58	0.50
1/8"	CB-P1B-11FG	CB-P1S-11FG	CB-P1L-11FG	1/8-28	0.97	0.65	0.56
1/4"	CB-P2B-11FN	CB-P2S-11FN	CB-P2L-11FN	1/4-18	1.50	0.79	0.69
1/4"	CB-P2B-11FG	CB-P2S-11FG	CB-P2L-11FG	1/4-19	1.45	0.87	0.75
3/8"	CB-P3B-11FN	CB-P3S-11FN	CB-P3L-11FN	3/8-18	1.63	0.94	0.81
3/8"	CB-P3B-11FG	CB-P3S-11FG	CB-P3L-11FG	3/8-19	1.63	1.01	0.88
1/2"	CB-P4B-11FN	CB-P4S-11FN	CB-P4L-11FN	1/2-14	1.94	1.15	1.00
1/2"	CB-P4B-11FG	CB-P4S-11FG	CB-P4L-11FG	1/2-14	1.92	1.23	1.06
3/4"	CB-P6B-11FN	CB-P6S-11FN	CB-P6L-11FN	3/4-14	2.06	1.37	1.19
3/4"	CB-P6B-11FG	CB-P6S-11FG	CB-P6L-11FG	3/4-14	2.01	1.52	1.31
1"	CB-P8B-11FN	CB-P8S-11FN	CB-P8L-11FN	1-11	2.21	1.80	1.56
1"	CB-P8B-11FG	CB-P8S-11FG	CB-P8L-11FG	1-11	2.23	1.80	1.56

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.

Product Tags:

0.25'' stainless steel quick connect fittings

IATF 16949 stainless steel quick connect fittings

NPTF stainless steel couplings quick release
