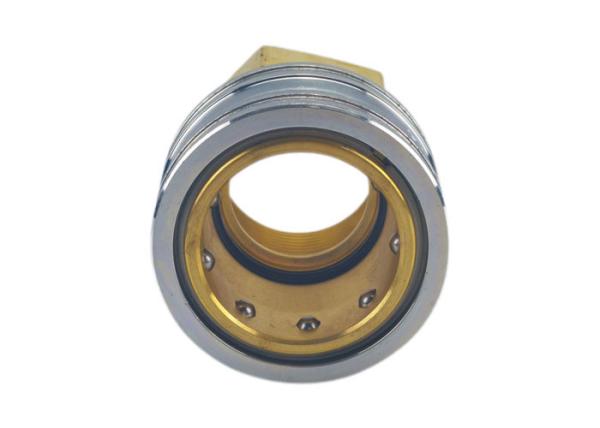

1-1/4'' Brass Non Valved Series Straight Through Coupler

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-11
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

1-1/4'' Brass Non Valved Series Straight Through Coupler

1-1/4'' CB-11 Series Non-Valved Series maximum flow straight-through couplings

Body sizes range from 1/8" to 1". They are well suited for use on pressure wash, steam cleaning and carpet cleaning equipment, and many fluid transfer systems. CB-11 Series straight-through couplings are designed for use where minimum pressure drop is required and valving is not needed.

Standard Materials

Brass, zinc-plated steel, stainless steel
Seals: NBR, Viton, EPDM

Features

Ball lock
Manual operation
Smooth bore permits free flow of liquid or gas
Male and female NPTF, BSPP and hose stem connections
Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.

BODY SIZE	Rated Pressure (PSI)	Rated Pressure (BAR)	Standard seal material
1/8"	2800	193	NBR
1/4"	5200	359
3/8"	2800	193
1/2"	2200	152
3/4"	1700	117
1"	1300	90

1-1/4'' Brass Non Valved Series Straight Through Coupler

Body Size	PARTNO. Brass	PARTNO. Stainless	Thread	A	B	HEX
1/8"	CB-S1B-11FN	CB-S1L-11FN	1/8-27	1.06	0.69	0.50
1/8"	CB-S1B-11FG	CB-S1L-11FG	1/8-28	1.03	0.69	0.56
1/4"	CB-S2B-11FN	CB-S2L-11FN	1/4-18	1.50	0.94	0.81
1/4"	CB-S2B-11FG	CB-S2L-11FG	1/4-19	1.50	0.94	0.81
3/8"	CB-S3B-11FN	CB-S3L-11FN	3/8-18	1.59	1.13	1.00
3/8"	CB-S3B-11FG	CB-S3L-11FG	3/8-19	1.59	1.13	1.00
1/2"	CB-S4B-11FN	CB-S4L-11FN	1/2-14	1.91	1.31	1.13
1/2"	CB-S4B-11FG	CB-S4L-11FG	1/2-14	1.91	1.31	1.13
3/4"	CB-S6B-11FN	CB-S6L-11FN	3/4-14	2.06	1.69	1.44
3/4"	CB-S6B-11FG	CB-S6L-11FG	3/4-14	2.06	1.69	1.44
1"	CB-S8B-11FN	CB-S8L-11FN	1-11	2.31	2.00	1.75
1"	CB-S8B-11FG	CB-S8L-11FG	1-11	2.33	2.00	1.75

1-1/4'' Brass Non Valved Series Straight Through Coupler

Body Size	PARTNO. Brass	PARTNO. Steel	PARTNO. Stainless	Thread	C	D	HEX
1/8"	CB-P1B-11FN	CB-P1S-11FN	CB-P1L-11FN	1/8-27	1.00	0.58	0.50
1/8"	CB-P1B-11FG	CB-P1S-11FG	CB-P1L-11FG	1/8-28	0.97	0.65	0.56
1/4"	CB-P2B-11FN	CB-P2S-11FN	CB-P2L-11FN	1/4-18	1.50	0.79	0.69
1/4"	CB-P2B-11FG	CB-P2S-11FG	CB-P2L-11FG	1/4-19	1.45	0.87	0.75
3/8"	CB-P3B-11FN	CB-P3S-11FN	CB-P3L-11FN	3/8-18	1.63	0.94	0.81
3/8"	CB-P3B-11FG	CB-P3S-11FG	CB-P3L-11FG	3/8-19	1.63	1.01	0.88
1/2"	CB-P4B-11FN	CB-P4S-11FN	CB-P4L-11FN	1/2-14	1.94	1.15	1.00
1/2"	CB-P4B-11FG	CB-P4S-11FG	CB-P4L-11FG	1/2-14	1.92	1.23	1.06
3/4"	CB-P6B-11FN	CB-P6S-11FN	CB-P6L-11FN	3/4-14	2.06	1.37	1.19
3/4"	CB-P6B-11FG	CB-P6S-11FG	CB-P6L-11FG	3/4-14	2.01	1.52	1.31
1"	CB-P8B-11FN	CB-P8S-11FN	CB-P8L-11FN	1-11	2.21	1.80	1.56
1"	CB-P8B-11FG	CB-P8S-11FG	CB-P8L-11FG	1-11	2.23	1.80	1.56

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
