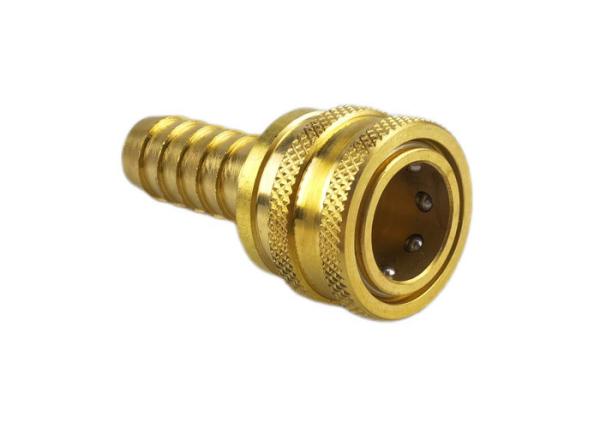

0.75'' Straight Through Coupler , Brass Straight Coupling

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-11
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

0.75'' Straight Through Coupler , Brass Straight Coupling

Hose Stem Connections straight-through coupler

Carterberg products can be applied widely to the joints and terminals of mechanical equipments, fire protection, shipping, military equipments, medical, aviation, metallurgy, chemical and power equipments.

Standard Materials

Brass, zinc-plated steel, stainless steel
Seals: NBR, Viton, EPDM

Features

Ball lock
Manual operation
Smooth bore permits free flow of liquid or gas
Male and female NPTF, BSPP and hose stem connections
Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.

BODY SIZE	Rated Pressure (PSI)	Rated Pressure (BAR)	Standard seal material
1/8"	2800	193	NBR
1/4"	5200	359
3/8"	2800	193
1/2"	2200	152
3/4"	1700	117
1"	1300	90

CB-11 Series straight-through couplings are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.

0.75'' Straight Through Coupler , Brass Straight Coupling

Body Size	PARTNO. Brass	PARTNO. Stainless	Hose I.D.	A	B
1/8"	CB-S1B-11H	CB-S1L-11H	3/16’’	1.41	0.69
1/8"	CB-S1B-11H	CB-S1L-11H	1/4’’	1.41	0.69
1/4"	CB-S2B-11H	CB-S2L-11H	1/4’’	2.10	0.94
3/8"	CB-S3B-11H	CB-S3L-11H	3/8’’	2.09	1.13
1/2"	CB-S4B-11H	CB-S4L-11H	1/2’’	2.19	1.31
3/4"	CB-S6B-11H	CB-S6L-11H	3/4’’	3.19	1.69
1"	CB-S8B-11H	CB-S8L-11H	1’’	3.32	2.00

0.75'' Straight Through Coupler , Brass Straight Coupling

Body Size	PARTNO. Brass	PARTNO. Steel	PARTNO. Stainless	Hose I.D.	A	B
1/8"	CB-P1B-11H	CB-P1S-11H	CB-P1L-11H	3/16’’	1.28	0.44
1/8"	CB-P1B-11H	CB-P1S-11H	CB-P1L-11H	1/4’’	1.28	0.44
1/4"	CB-P2B-11H	CB-P2S-11H	CB-P2L-11H	1/4’’	1.93	0.56
3/8"	CB-P3B-11H	CB-P3S-11H	CB-P3L-11H	3/8’’	2.09	0.69
1/2"	CB-P4B-11H	CB-P4S-11H	CB-P4L-11H	1/2’’	2.17	0.88
3/4"	CB-P6B-11H	CB-P6S-11H	CB-P6L-11H	3/4’’	3.17	1.19
1"	CB-P8B-11H	CB-P8S-11H	CB-P8L-11H	1’’	3.28	1.50

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
