10 Bar 0.25'' High Flow Brass Compressed Air Coupling

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-12
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

10 Bar 0.25'' High Flow Brass Compressed Air Coupling

1/4'' Applications in Air Tools High flow Brass Pneumatic Quick Coupling

CB-12 Series High flow, automatic Quick-Connect Couplings designed for use with compressed air.

Applications & Markets

• General Pneumatics

• Air Tools

• Construction

Features

Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line
Sleeve guard protects against accidental disconnection
Compatible with Hansen AUTO-FLO23Series

10 Bar 0.25'' High Flow Brass Compressed Air Coupling

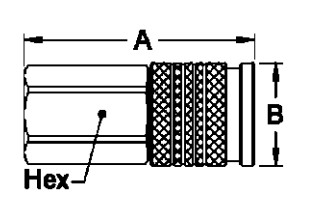

Body Size	PARTNO.	Thread	A	B	HEX
1/4"	CB-S2B-12FN-G	1/4-18	2.02	0.94	0.81
1/4"	CB-S2B-12FG-G	1/4-19	2.02	0.94	0.81
1/4"	CB-S3B-12FN-G	3/8-18	2.02	0.94	0.81
1/4"	CB-S3B-12FG-G	3/8-19	2.02	0.94	0.81
1/4"	CB-S4B-12FG-G	1/2-14	2.34	0.94	1.06

10 Bar 0.25'' High Flow Brass Compressed Air Coupling

Body Size	PARTNO.	Thread	C	D	HEX
1/4"	CB-P1S-12FN	1/8-27	1.47	0.65	0.56
1/4"	CB-P2S-12FN	1/4-18	1.63	0.79	0.69
1/4"	CB-P3S-12FN	3/8-18	1.69	0.94	0.81
1/4"	CB-P2B-12FN	1/4-18	1.63	0.78	0.69
1/4"	CB-P2L-12FN	1/4-18	1.63	0.79	0.69

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.

Product Tags:

0.25'' compressed air coupling

IATF 16949 compressed air coupling

145psi pneumatic couplings

10 Bar 0.25'' High Flow Brass Compressed Air Coupling
