Aviation Industry Male 0.75 Inch Threaded Coupling

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-5
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

Aviation Industry Male 0.75 Inch Threaded Coupling

Applications in aviation industry male threaded coupling Threaded Quick Connect

Minimum inclusion of air on connection
Minimum loss of fluid on disconnection
Compatible with HANSEN HYDRAV series.

CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

Applications

Mainly intended for the aviation industry, these couplings, give connections between test benches and the hydraulic systems of certain aircraft. They are equally useful where anti-unscrew safety requirements are needed.

Standard Materials

Aluminium/Stainless steel
Seals: NBR, Viton, EPDM

Features

Double shut-off couplings, dry-break
Connection by fast-screw sleeve, with security feature giving a vibration-resistant coupling
End connections to SAE AS 4395 standard

Aviation Industry Male 0.75 Inch Threaded Coupling

Body Size	PARTNO.	A	B	C	HEX
1/4"	CB-S2B-5MU-E	41	39	14	14
3/4"	CB-S6B-5MU-E	49	60	22	33
1"	CB-S8L-5MU-E	79	70	23	48
1"1/2	CB-S10B-5MU-E	91	80	28	54

Aviation Industry Male 0.75 Inch Threaded Coupling

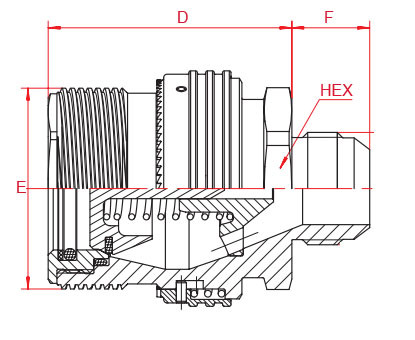

Body Size	PARTNO.	D	E	F	HEX
1/4"	CB-P2B-5MU-E	35	25	14	29
3/4"	CB-P6B-5MU-E	61	41	36	41
1"	CB-P8L-5MU-E	73	60	23	54
1"1/2	CB-P10B-5MU-E	81	70	28	70
