Hydraulic Jacks Zinc Plated Steel Threaded Quick Connect

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-5
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

Hydraulic Jacks Zinc Plated Steel Threaded Quick Connect

Applications in Hydraulic jacks, clamping systems Hydraulic coupling Threaded Quick Connect

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.

Standard Materials

Zinc-plated steel
Seals: NBR, Viton, EPDM

Features

Double shut-off couplings, with poppet or ball valving
Locking by screwing the socket sleeve-nut on to the male-threaded plug
Dust caps and plugs
Interchange with other makes of couplings with the same profile
Compatible with HANSEN W-56000 & HP3 series.

Hydraulic Jacks Zinc Plated Steel Threaded Quick Connect

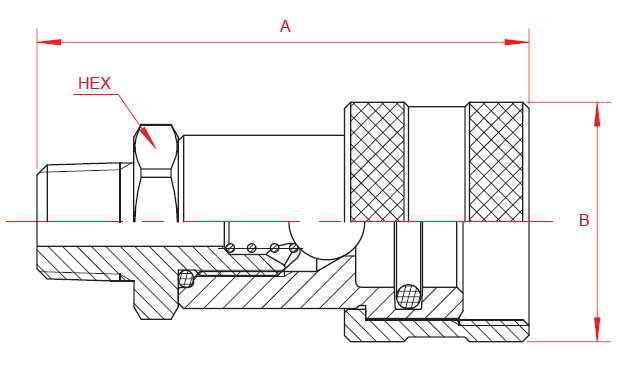

Body Size	PARTNO.	Thread	A	B	HEX
3/8"	CB-S3S-5FM-D	3/8 NPT	72	35	25

Hydraulic Jacks Zinc Plated Steel Threaded Quick Connect

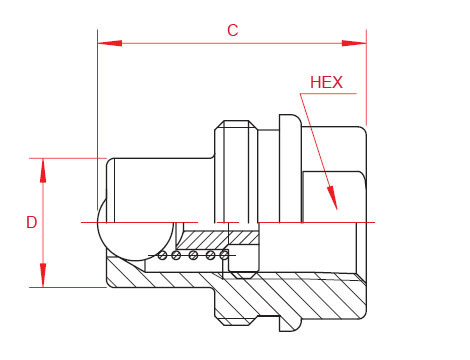

Body Size	PARTNO.	Thread	C	D	HEX
3/8"	CB-P3S-5FN-D	3/8 NPT	40	19	23,8
