Stainless Steel Female Hydraulic Quick Connect Fittings

Ask Lasest Price
Brand Name :	carterberg
Certification :	IATF16949
Price :	Negotiation
Delivery Time :	7-20 work days
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Model Number :	CB-5

Add to Cart

Product Details
Company Profile

Stainless Steel Female Hydraulic Quick Connect Fittings

Thread locked type hydraulic quick coupling Threaded Quick Connect

Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module D1 of the European Pressure Equipment Directive 97/23 EC. They should not be used to convey volatile gases.

Applications

CB-5 Series couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

All industrial and severe applications.Public works, offshore, lifting equipment, systems subject to heavy mechanical loads, high pressures

Standard Materials

zinc-plated steel, stainless steel
Seals: NBR, Viton, EPDM

Features

Double shut-off couplings
Locking by screwing the socket sleeve-nut on to the male-threaded plug. This gives the coupling resistance to heavy mechanical demands (ram loads, hydraulic shocks, severe pulsating pressures, etc.).
Can be connected against residual pressure
Dust caps and plugs
Compatible with GROMELLE 6000 Series and HOLMBURY TGW series.

Stainless Steel Female Hydraulic Quick Connect Fittings

Body Size	PARTNO.	Thread	A	B	HEX
1/4"	CB-S2S-5FN	1/4-18	53	35	19
1/4"	CB-S2S-5FG	1/4-19	53	35	19
3/8"	CB-S3S-5FN	3/8-18	65	38	23
3/8"	CB-S3S-5FG	3/8-19	65	38	23
1/2"	CB-S4S-5FN	1/2-14	74	45	27
1/2"	CB-S4S-5FG	1/2-14	74	45	27
3/4"	CB-S6S-5FN	3/4-14	91	55	35
3/4"	CB-S6S-5FG	3/4-14	91	55	35
1"	CB-S8S-5FN	1-11 1/2	103	69	41
1"	CB-S8S-5FG	1-11	103	69	41

Stainless Steel Female Hydraulic Quick Connect Fittings

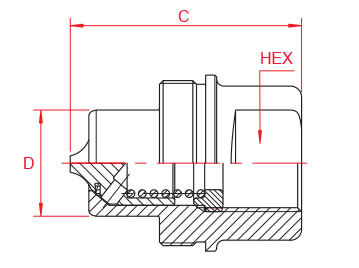

Body Size	PARTNO.	Thread	C	D	HEX
1/4"	CB-P2S-5FN	1/4-18	35	15	19
1/4"	CB-P2S-5FG	1/4-19	35	15	19
3/8"	CB-P3S-5FN	3/8-18	42	19	23
3/8"	CB-P3S-5FG	3/8-19	42	19	23
1/2"	CB-P4S-5FN	1/2-14	50	22	27
1/2"	CB-P4S-5FG	1/2-14	50	22	27
3/4"	CB-P6S-5FN	3/4-14	63	29	35
3/4"	CB-P6S-5FG	3/4-14	63	29	35
1"	CB-P8S-5FN	1-11 1/2	71	36	41
1"	CB-P8S-5FG	1-11	71	36	41
