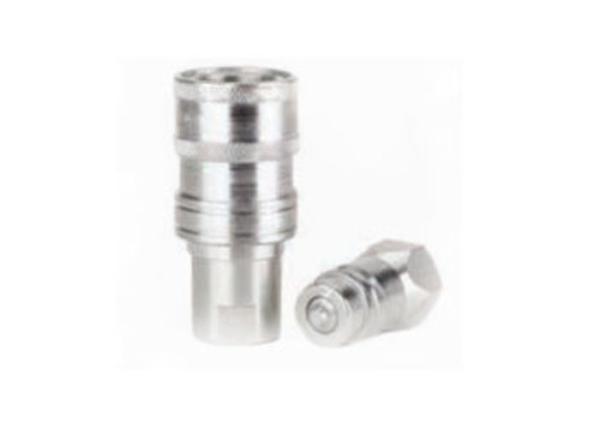

Hydraulic Zinc Plated Steel 3000PSI ISO 5675 Coupler

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-2
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

Hydraulic Zinc Plated Steel 3000PSI ISO 5675 Coupler

Interchanges with ISO 5675 plug/male tips maximum operating pressure is 3,000 psi Hydraulic Quick Coupling

CB-4 Series coupling incorporates special valving allowing connection to male half under pressure. The maximum operating pressure is 3,000 psi. Contains an over travel, selfsealing poppet valve construction for connecting to a pressurized male tip. Applications require that the tractor control valve be actuated to open the flow path and to equalize the pressure.

Applications & Markets • Hydraulic fluid transfer • Agricultural equipment

Features

Push-to-connect for one hand operation when sleeve is mounted
Interchanges with ISO 5675 plug/male tips
Retaining ring groove on socket/female half for bulkhead and breakaway frame mounting
Standard seal material: Buna-N
Standard body material: High resistance carbon steel with zinc trivalent plating

Hydraulic Zinc Plated Steel 3000PSI ISO 5675 Coupler

Body Size	PARTNO.	Thread	A	B	Hex
1/4"	CB-S2S-4FN	1/4-18	53.5	27.6	19
1/4"	CB-S2S-4FG	1/4-19	53.5	27.6	19
3/8"	CB-S3S-4FN	3/8-18	63	34	24
3/8"	CB-S3S-4FG	3/8-19	63	34	24
1/2"	CB-S4S-4FN	1/2-14	66.3	38.6	27
1/2"	CB-S4S-4FG	1/2-14	66.3	38.6	27
3/4"	CB-S6S-4FN	3/4-14	82.5	48.2	34
3/4"	CB-S6S-4FG	3/4-14	82.5	48.2	34
1"	CB-S8S-4FN	1-11	96.5	56	41
1"	CB-S8S-4FG	1-11	96.5	56	41

Hydraulic Zinc Plated Steel 3000PSI ISO 5675 Coupler

Body Size	PARTNO.	Thread	C	D	E	HEX
1/4"	CB-P2S-4FN	1/4-18	18.5	12.5	36	19
1/4"	CB-P2S-4FG	1/4-19	18.5	12.5	36	19
3/8"	CB-P3S-4FN	3/8-18	22	13	40	24
3/8"	CB-P3S-4FG	3/8-19	22	13	40	24
1/2"	CB-P4S-4FN	1/2-14	27	16	43.5	27
1/2"	CB-P4S-4FG	1/2-14	27	16	43.5	27
3/4"	CB-P6S-4FN	3/4-14	32	19	53.5	34
3/4"	CB-P6S-4FG	3/4-14	32	19	53.5	34
1"	CB-P8S-4FN	1-11	38	21	63	41
1"	CB-P8S-4FG	1-11	38	21	63	41

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
