1.0MPa Semi Automatic Brass Quick Coupling Compatible With Rectus 25KA

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-3
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

1.0MPa Semi Automatic Brass Quick Coupling Compatible With Rectus 25KA

COMPATIBLE WITH Rectus 25KA SINGLE HANDED AND SEMIAUTOMATIC TYPE BRASS COUPLING

DG SINGLE HANDED AND SEMIAUTOMATIC TYPE QUICK COUPLING(BRASS)
→ Features: Single hand operation, it is widely used in Europe market.
→ Advantages: single hand operation, broad interchange, various of connections.
→ Application: pneumatic tools, laboratories, measure and control equipments, machinery equipments.
→ Interchangeability: CEJN 320 Series, Rectus 25KA and 26KA series.
→ Working Pressure: 1.0Mpa.
→ Working Temperature: -20℃ to +120℃.

1.0MPa Semi Automatic Brass Quick Coupling Compatible With Rectus 25KA

PARTNO.	LS	￠D	HEX1	A	T
CB-DG-02SM	52.5	25	22	13	1/4
CB-DG-03SM	52.5	25	22	13	3/8
CB-DG-04SM	54.4	25	22	14	1/2

1.0MPa Semi Automatic Brass Quick Coupling Compatible With Rectus 25KA

PARTNO.	LS	￠D	HEX1	A	T
CB-DG-02SF	52.5	25	22	13	1/4
CB-DG-03SF	52.5	25	22	13	3/8
CB-DG-04SF	53.5	25	24	14	1/2

PARTNO.	LS	￠D	HEX1	A	T
CB-DG-02SH	64.5	25	22	25	9
CB-DG-03SH	69.5	25	22	30	10.5
CB-DG-04SH	69.5	25	22	30	13

PARTNO.	LP	C	HEX2	A	T	d
CB-DG-02PM	40	21	14	13	1/4	7
CB-DG-03PM	40	21	17	13	3/8	7
CB-DG-04PM	42	21	22	14	1/2	7

PARTNO.	LP	C	HEX2	A	T	d
CB-DG-02PF	37	21	17	13	1/4	7
CB-DG-03PF	38	21	19	13	3/8	7
CB-DG-04PF	38	21	24	14	1/2	7

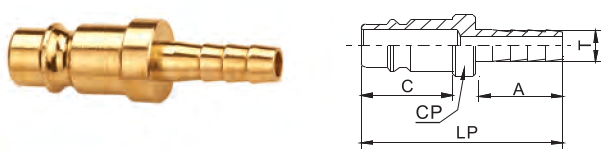

PARTNO.	LP	C	CP	A	T	d
CB-DG-02PH	51	21	￠14	25	9	7
CB-DG-03PH	56	21	￠14	30	10.5	7
CB-DG-04PH	56	21	￠14	30	13	7
