Hydraulic Brass Quick Coupling 1/8 For Non Valved Applications

Ask Lasest Price
Brand Name :	carterberg
Model Number :	CB-3
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

Hydraulic Brass Quick Coupling 1/8 For Non Valved Applications

Applications in maximum flow Japanese type hydraulic Brass quick coupling

Applications: The Series are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.

Specifications:

Body Size(in)	1/8	1/4	3/8	1/2
Rate Pressure(PSI)
Brass Cplr/Npl	1000	1000	1000	1000
SS Cplr/Npl	2000	2000	1500	1500
Rated Flow(GPM)	3	6	12	12
Temperature Range(std seals)	-20℃ to +120℃

Features:
1.The smooth, open bore with no valving in either half offers minimal pressure drop and allows easy clesning in applications where the same lines are used for more than one media.
2. The couplers and nipples are machined from solid bar stock providing the quality coupling that is durable.
3.The nipples are available in brass and 304 stainless steel as standard product materials.
4.The nipples are available in 304 stainless steel, brass.
5.The coupling is an “interchange” coupling because the dimensionally and functionally can interchange with similar couplings made by other manufactures.
6.Compatible with NITTO TSP Series.

Hydraulic Brass Quick Coupling 1/8 For Non Valved Applications

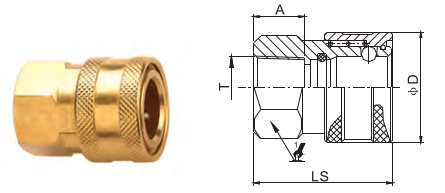

PART NO.	LS	￠ D	HEX1	A	T
CB-RD-01SF	27	17.5	14	9	ZG1/8
CB-RD-02SF	32	24	19	13	ZG1/4
CB-RD-03SF	35.8	28.3	23	13	ZG3/8
CB-RD-04SF	42.6	35	29	17	ZG1/2
CB-RD-06SF	49.5	41	36	18	ZG3/4
CB-RD-08SF	59.3	57.8	50	22	ZG1

Hydraulic Brass Quick Coupling 1/8 For Non Valved Applications

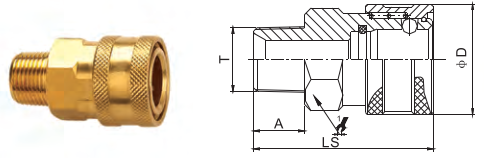

PART NO.	LS	￠ D	HEX1	A	T
CB-RD-01SM	30	17.5	14	9	ZG1/8
CB-RD-02SM	42	24	19	13	ZG1/4
CB-RD-03SM	46.3	28.3	23	13	ZG3/8
CB-RD-04SM	56.1	35	29	17	ZG1/2
CB-RD-06SM	61	41	36	18	ZG3/4
CB-RD-08SM	67.3	57.8	50	22	ZG1

PART NO.	LP	C	HEX2	A	T
CB-RD-01PF	26	15.5	14	9	ZG1/8
CB-RD-02PF	35	18	19	13	ZG1/4
CB-RD-03PF	38	21.2	23	13	ZG3/8
CB-RD-04PF	45	24.5	29	17	ZG1/2
CB-RD-06PF	50	28	36	18	ZG3/4
CB-RD-08PF	61	36	50	22	ZG1

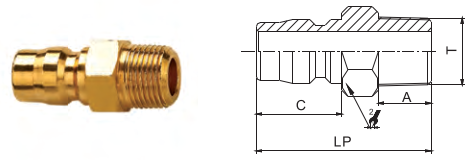

PART NO.	LP	C	HEX1	A	T
CB-RD-01PM	32	15.5	14	9	ZG1/8
CB-RD-02PM	38	18	19	13	ZG1/4
CB-RD-03PM	43	21.2	23	13	ZG3/8
CB-RD-04PM	52	24.5	29	17	ZG1/2
CB-RD-06PM	56	28	36	18	ZG3/4
CB-RD-08PM	73	36	50	22	ZG1
