DIN EN1829-2 DN5 4 Layer Ultra High Pressure Hose 180MPa

Ask Lasest Price
Brand Name :	CEJN
Model Number :	H951180
Certification :	IATF16949
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000~20000 pc/month
Delivery Time :	7-20 work days

Add to Cart

Product Details
Company Profile

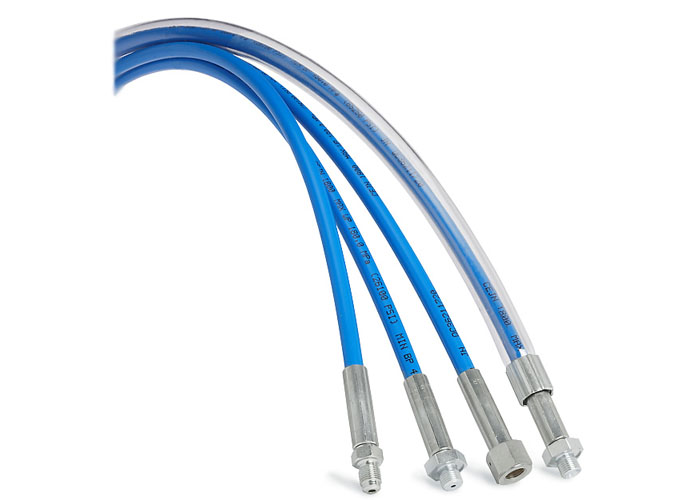

DIN EN1829-2 DN5 4 Layer Ultra High Pressure Hose 180MPa

In accordance DIN EN1829-2 Hose 180 MPa DN5 4 layer Ultra High Pressure Hose

Top operator safety
Robust design
Light weight
Certified and traceable with CiS
Custom made assemblies
In accordance DIN EN1829-2

This 180MPa high pressure hose is designed for hydraulic applications such as bolt tensioning and is also suitable for water jetting applications in both on and offshore environments. The 4 layers of high tensile steel makes this robust and safe hose to work with, without compromising on flexibility. Low volumetric expansion (18%) means the overall length of the hose does no vary more than +/-2% at MWP giving fast response times in hydraulic systems.

Applications: 1. High pressure hydraulic service including bolt tensioning 2. Industrial cleaning including the shipbuilding and construction sectors 3. Tube cleaning in process industries 4. Hydrostatic test bench accessories 5. Promoting safe and flexible operation of chemical fluids systems

Design	Inner tube of polyoxymethylene (POM), 4 spiral layers of high tensile steel wire, outer sheath of polymide (PA)
ID x OD	4.8 x 11.6 mm
Max. working pressure	180 MPa
Min. burst pressure	450 MPa
Min. bend radius	130 mm (5.1")
Weight	280 g/m (9.9 oz)
Temperature range Hydraulic	-40°C — +100°C (-40°F — +212°F)
Temperature range Water Jetting	-10°C — +70°C (14°F — +158°F)
